Dhyana

Introduction

This device supports several camera models

Currently, two kinds of camera are supported:

- The Dhyana95/Dhyana95 V2

- The Dhyana4040

Supported Camera

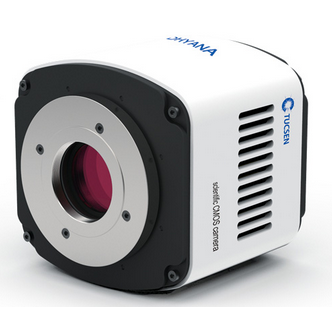

	Dhyana95

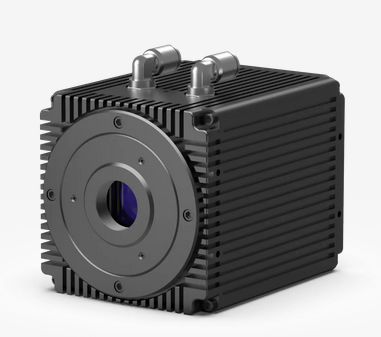

	Dhyana95V2

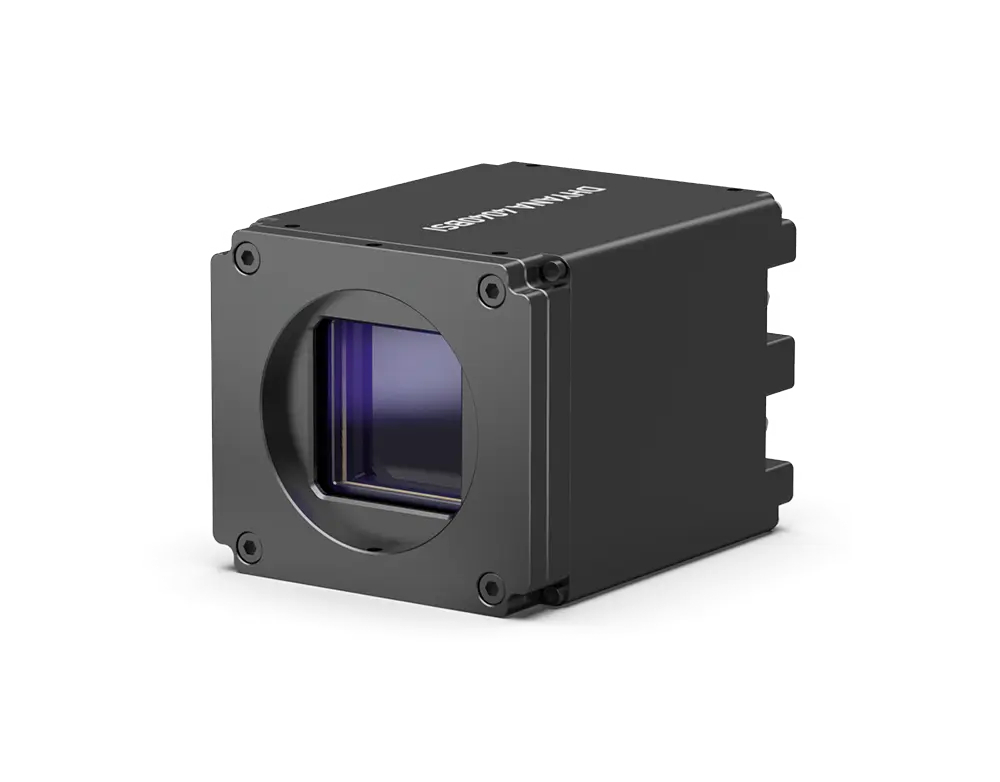

	Dhyana4040

Dhyana95

Introduction

This is the documentation of the Lima/Dhyana Tango C++ device.

This camera can manage 4 triggers modes : INTERNAL_SINGLE, EXTERNAL_MULTI, EXTERNAL_GATE, INTERNAL_MULTI

This camera can manage ROI

This camera can’t manage Binning.

Dhyana4040

Introduction

The Dhyana 4040/Dhyana 4040 BSI delivers big sensor performance with 90% QE.

With a 52mm diameter sensor made of 9 micron pixels, it operates with

low noise at high speed. Providing CCD level performance in terms of

background and noise performance, at speeds that enable a wide range of applications.

Common Properties

Property name	Default value	Type	Description
__ExpertTimerPeriod	1	UShort	Timer period (in ms) Useful only for Internal Trigger
TemperatureTargetAtInit	15	Double	Temperature Target at init

Common Attributes

Attribute name	Read/Write	Type	Description
tucamVersion	R	String	Get Tucam Library Version.
sensorTemperature	R	Double	Get Temperature of the detector (in Celsius)
sensorTemperatureTarget	R/W	Double	Set the Temperature target of the detector (in Celsius)
fanSpeed	R/W	Enum	Available only for expert user Define the fan speed of the detector [0..5]
globalGain	R/W	Enum	Define the gain of the detector [LOW, HIGH, HDR]
frameRate	R	Double	Get frame rate value
trigOutputKind1	R/W	Enum	Available only for expert user Set trigger output mode on channel 1 [ExposureStart, Readout, Global]
trigOutputKind2	R/W	Enum	Available only for expert user Set trigger output mode on channel 2 [ExposureStart, Readout, Global]
trigOutputKind3	R/W	Enum	Available only for expert user Set trigger output mode on channel 3 [ExposureStart, Readout, Global]
trigOutputWidth1	R/W	Double	Available only for expert user Set width value option on channel 1 mode
trigOutputWidth2	R/W	Double	Available only for expert user Set width value option on channel 2 mode
trigOutputWidth3	R/W	Double	Available only for expert user Set width value option on channel 3 mode
trigOutputDelay1	R/W	Double	Available only for expert user Set delay value option on channel 1 mode
trigOutputDelay2	R/W	Double	Available only for expert user Set delay value option on channel 2 mode
trigOutputDelay3	R/W	Double	Available only for expert user Set delay value option on channel 3 mode
trigOutputEdge1	R/W	Enum	Available only for expert user Set edge option value on channel 1 mode [Rising, Falling]
trigOutputEdge2	R/W	Enum	Available only for expert user Set edge option value on channel 2 mode [Rising, Falling]
trigOutputEdge3	R/W	Enum	Available only for expert user Set edge option value on channel 3 mode [Rising, Falling]

Dhyana4040 specific Attributes

Attribute name	Read/Write	Type	Description
tecMode	R/W	Enum	Set the sensor cooling switch [ON, OFF]

Common Commands

Command name	Arg. in	Arg. out	Description
Init	Void	Void	Do not use (Use Init of the Generic device)
State	Void	Long	Returns the device state
Status	Void	String	Returns the device status
setParamter	String Array	Void	Sets the value of a parameter
getParameter	String	String	Returns the name and value of a specific parameter
getAllParameters	Void	String	Returns all parameters and their values
